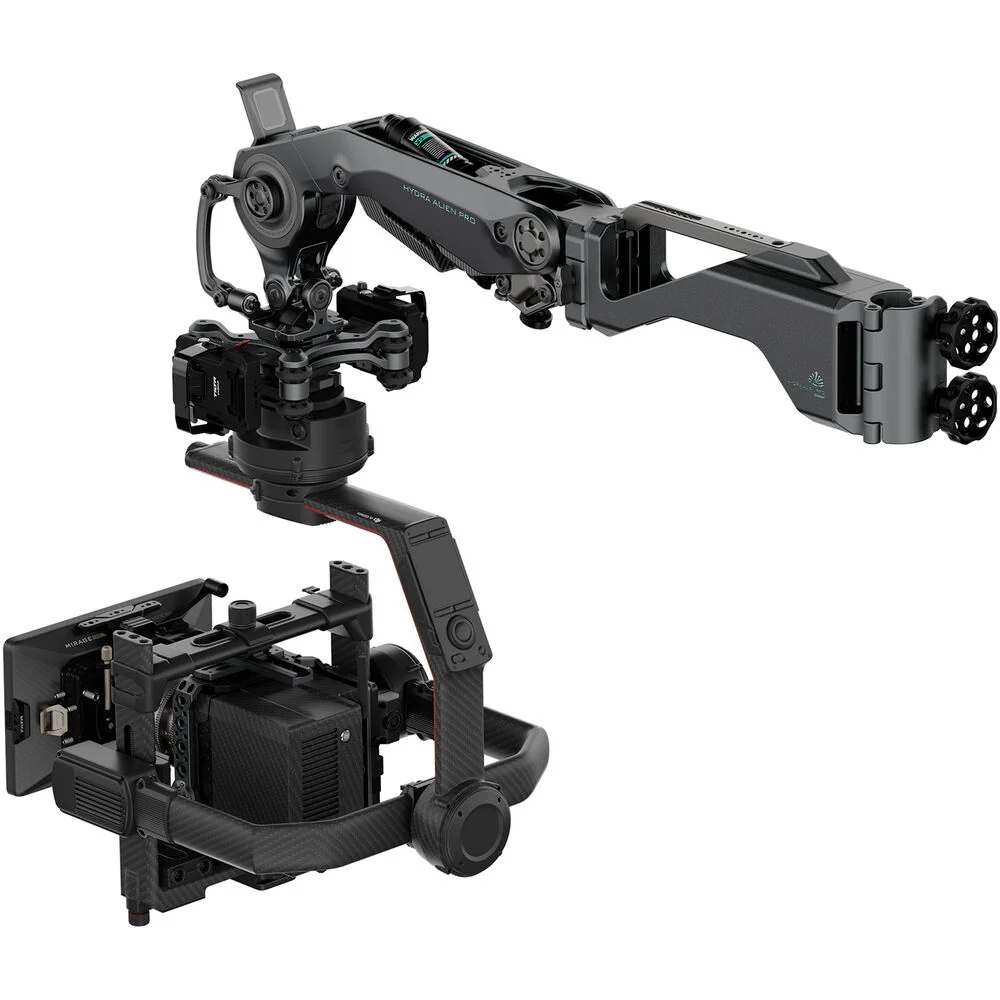

Tilta Arm, Head & Speed Rail Mounting Kit for Hydra Alien Pro (V-Mount)

Tilta Arm, Head & Speed Rail Mounting Kit for Hydra Alien Pro (V-Mount)

Add a shock-absorbing arm to your Hydra Alien Pro car mount for smooth motion shots with this Arm, Head & Speed Rail Mounting Kit from Tilta. The kit includes a shock-absorbing arm, shock-absorbing head, power supply baseplate, dual V-mount plate, counterweights, 50mm standard speed rail mounting clamp, swappable shock absorber kit, safety tether, a mount adapter for a DJI Ronin series gimbals, and power cables.

Mounting

The arm is designed to mount and unmount a larger gimbal, such as a DJI Ronin 2, using Manfrotto dovetail plates, and there are multiple safety pins and knobs to keep your gear secure onto the 50mm speed rail. Multiple 1/4"-20 and 3/8"-16 threads provide additional mounting points.

Load Capacity

The arm supports loads using different tension settings and a number of counterweights:

Up to 13 kg with the heavy setting, with rigs such as DJI Ronin 2 with a cinema camera

Up to 9.97 kg with medium setting, with rigs such as midsize gimbals like the M?VI Pro or DJI Ronin M with a compact cine camera

Up to 6.98 kg with the light setting, with rigs such as the DJI RS series gimbals with a mirrorless camera or the Ronin 4D

Power and Control

The dual V-mount provides power to the arm via the 12-17V power input. There is also a power output to keep your gimbal powered. You can remotely control the shock-absorbing head's payload mode and damping from 0 to 100 with the separately available Nucleus Nano 2 from up to 328' away. Damping tension can be adjusted, and the USB-C port on the arm allows you to upgrade the firmware with future releases.

Shock-Absorbing Head

The shock-absorbing head features two types of shock absorbers that can be swapped out in sets of four on the individual posts of the head for heavier or lighter loads. It prevents shake and reduces high-frequency vibration. A Manfrotto-style quick release plate allows you to mount your camera rig or gimbal.

Touchscreen OLED Display

The built-in touchscreen status display provides onboard control of damping tension, battery level, payload level, and wireless signal status.

Compatible Gimbals

The shock-absorbing head can pair with the following gimbals:

DJI RS 4 Pro

DJI Ronin 4D

DJI Ronin-M

DJI Ronin 2

Key Features:

Shock-Absorbing Arm for Hydra Alien Pro

Shock-Absorbing Head, Counterweight Set

Power Supply Base, Dual V-Mount Plate

50mm Speed Rail Mounting Clamp

Swappable Shock Absorber Kit

DJI Ronin Series Mount Adapter

Real-Time OLED Touch Control Display

Built-In Damping and Payload Settings

What's in the Box:

Tilta Arm, Head & Speed Rail Mounting Kit for Hydra Alien Pro (V-Mount)

Shock-Absorbing Arm

Shock-Absorbing Head

DJl Ronin 2 Mount Adapter

Tilta Power Supply Base Plate for Select DJI Gimbals

V-Mount Power Module

Swappable Shock Absorber

Tilta Counterweight (0.21 kg)

Tool Kit

Safety Tether

1/4"-20 Ring Screw

Tilta D-Tap to 4-Pin LEMO-Type Power Cable for RED DSMC2 Cameras

Tilta 2-Pin to 2-Pin LEMO Cable (23")

Tilta 50mm Mounting Clamp for Hydra Alien Pro
