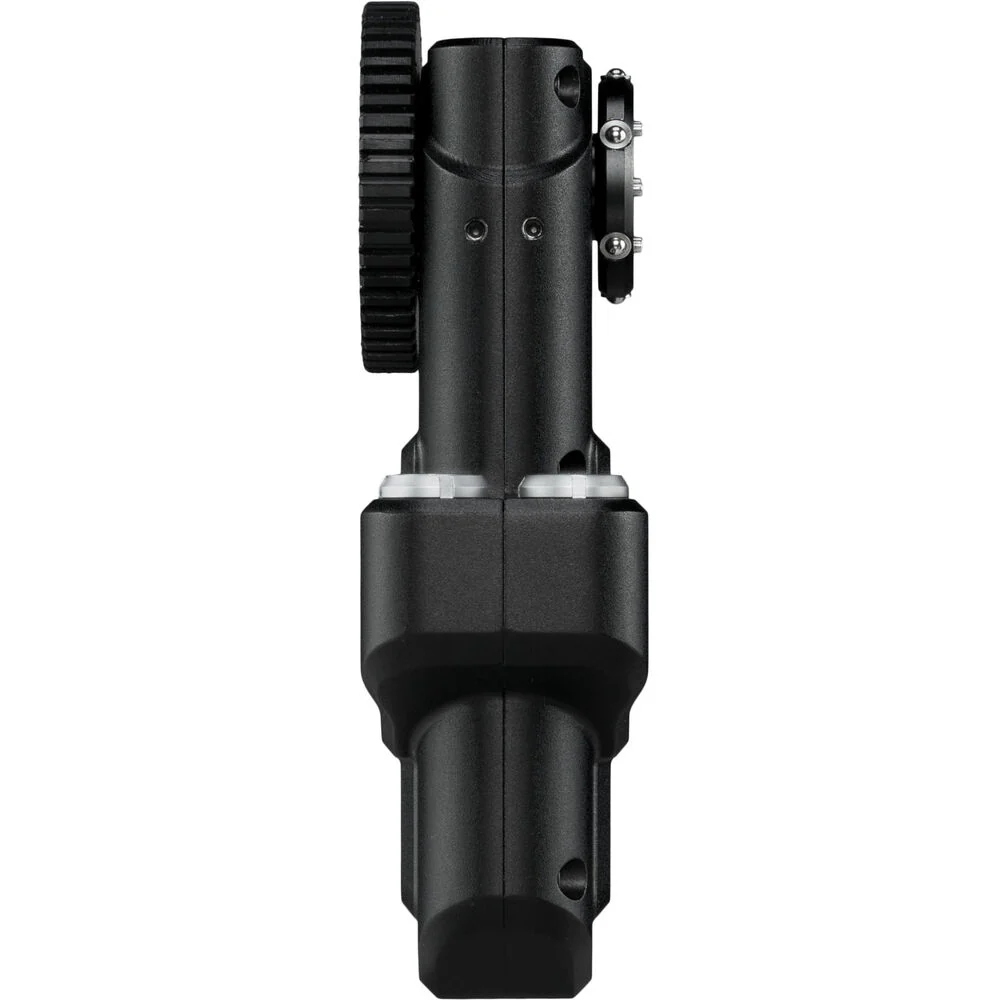

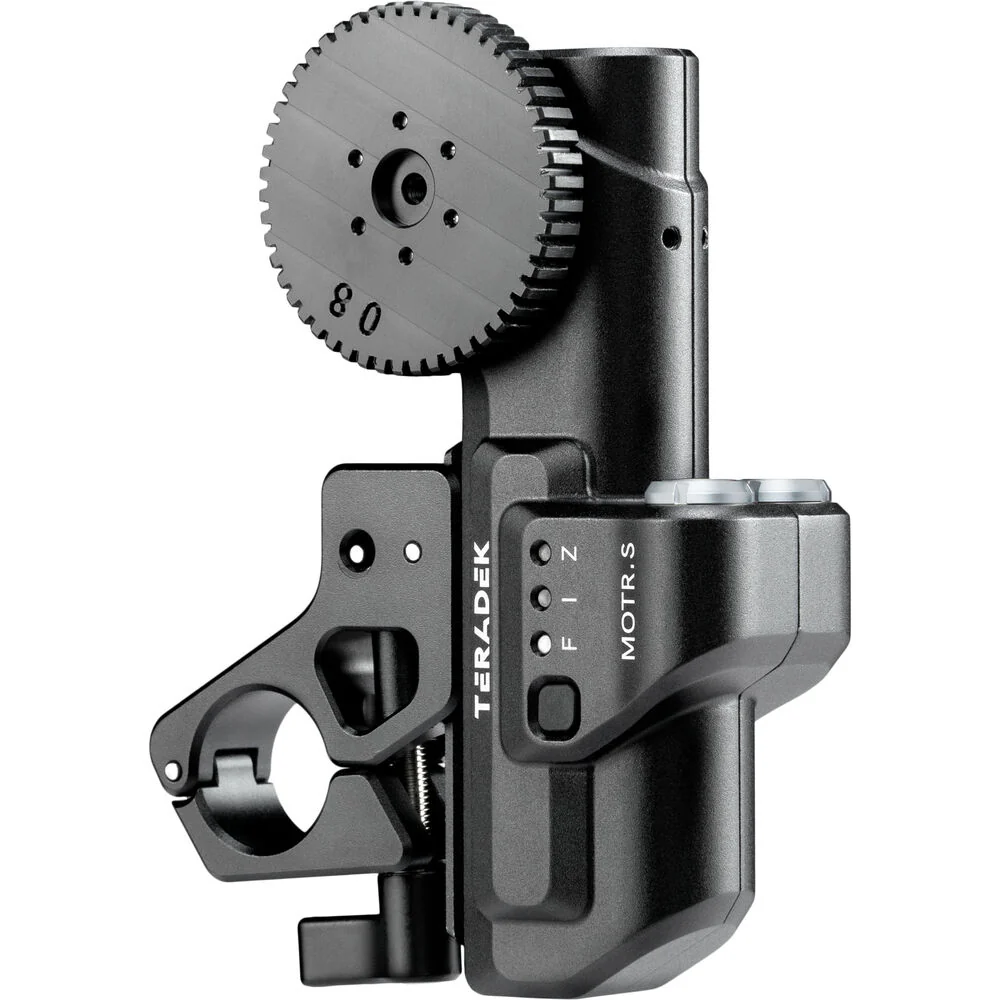

Teradek RT MOTR.S Lens Motor

Teradek RT MOTR.S Lens Motor

Designed to improve upon previous models, the Teradek RT MOTR.S Lens Motor is an ultra-compact, lightweight, and speedy lens control unit capable of adjusting focus, iris, or zoom functions. The motor has a maximum torque of 0.95nm and a maximum speed of 297 teeth per second. Balanced cable management ensures your 0B 4-pin connections redirect cables and prevent them from getting in the way of your camera configuration.

An improved rod clamp is compatible with both 15 and 19mm rods. The MOTR.S can be daisy-chained to suit your needs. The motor supports an operating voltage up to 32V.

MOTR.S Upgrades

More compact and lightweight form factor

Redesigned aluminium chassis, reinforced sockets, next gen circuit boards

New 15/19mm rod clamp with better located handle

0.95nm maximum torque, 297 teeth per second

Key Features:

Compact Lens-Control Motor

15/19mm Rod Clamp

Two 0B 4-Pin Connectors

0.96nm Maximum Torque

297 Teeth per Second

Balanced Cable Management

Up to 32V Operating Voltage

What's in the Box:

Teradek RT MOTR.S Lens Motor
