Teradek MDR.X 3-Channel Lens Control Receiver with Bluetooth

Teradek MDR.X 3-Channel Lens Control Receiver with Bluetooth

Connect this to your camera's lens support motors and drive your focus, iris, and zoom wirelessly with the MDR.X 3-Channel Lens Control Receiver with Bluetooth from Teradek. The unit is compatible with all RT motors and controllers, allowing run/stop control with a variety of cameras and camera control with RED DSMC2 cameras. The unit features two auxiliary control ports, letting you use available hardwired controllers.

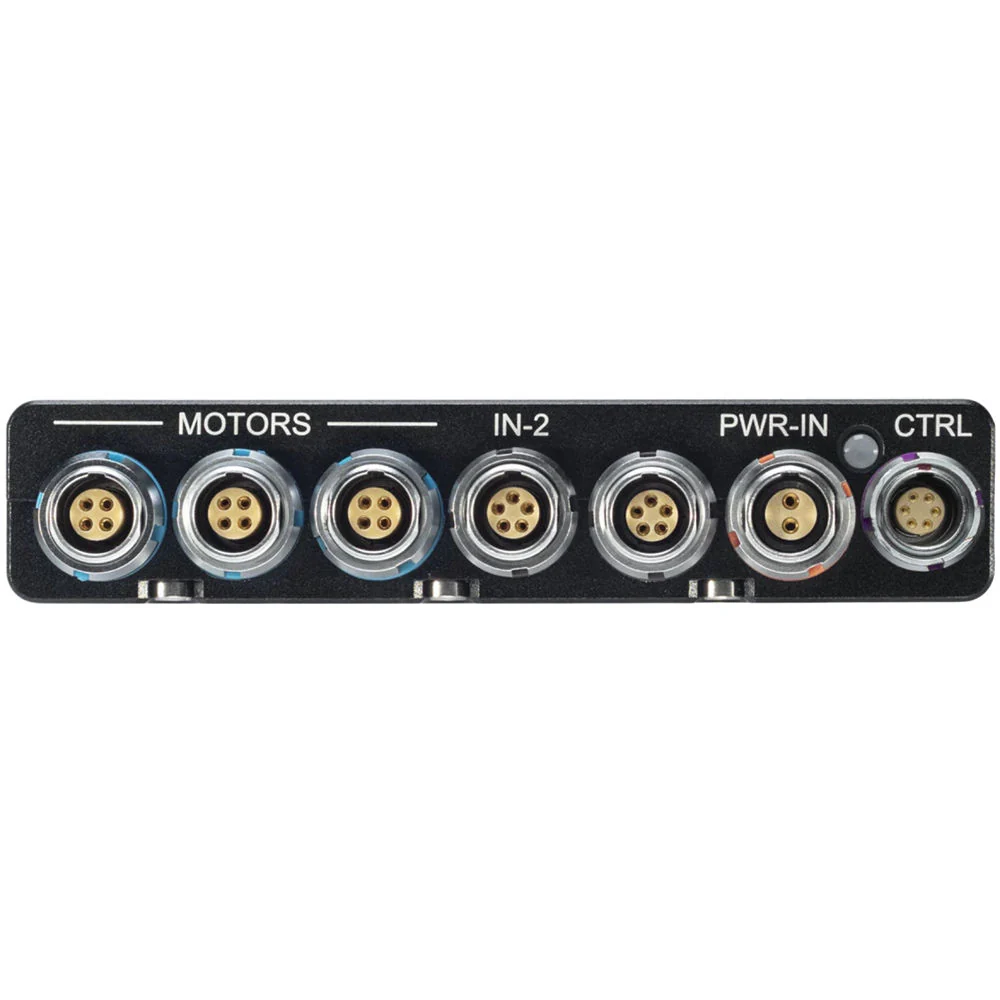

Multiple Inputs/Outputs

Three motor ports for focus, iris, and zoom

Two auxiliary inputs for wired control (via Teradek RT thumbwheel/zoom rocker)

One cam output for RED DSMC2 camera control

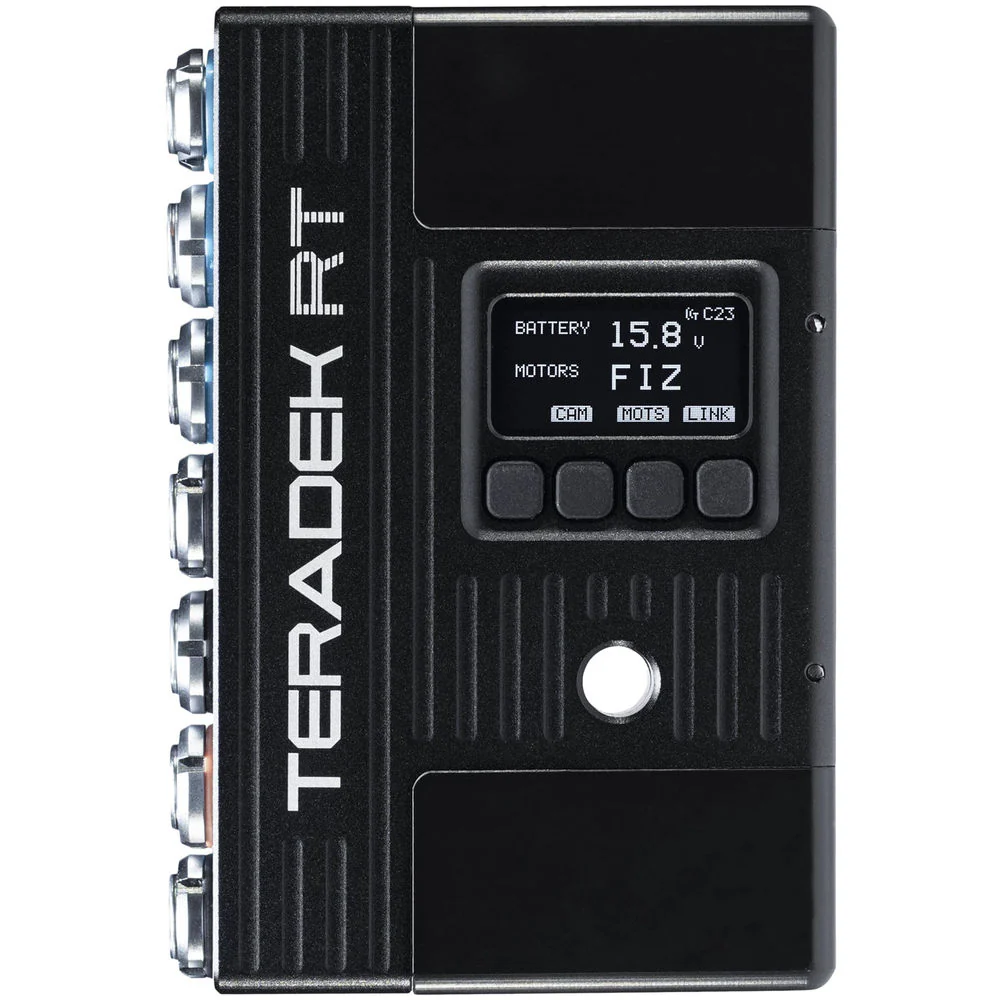

OLED Display

Each receiver includes an on-unit OLED display with push buttons for configuring motor axes, as well as displaying status readouts including wireless channels, battery voltage, and more.

Wireless Range

RT FHSS

Line-of-sight: Up to 5000' (in USA/FCC mode)

Indoors: Up to 492'

Bluetooth 5

Theoretical maximum range of 800' (actual range will vary)

Teradek RT App

Manage, update, and configure every piece of your Teradek RT system via Bluetooth 5 with the Teradek RT app for iOS. Create lens maps, configure FIZ settings, perform basic camera controls, update firmware, and much more from the convenience of your smartphone or tablet.

Key Features:

For All RT Motors & Controllers

Control Focus/Iris/Zoom by 2.4 GHz Wi-Fi

Full Control with RED DSMC2 Cameras

Run/Stop Support for Select Cameras

Input Ports for Physical Controllers

What's in the Box:

Teradek MDR.X 3-Channel Lens Control Receiver with Bluetooth
