Teradek Bolt 6 XT Max 12G SDI/HDMI Wireless RX Gold Mount

Teradek Bolt 6 XT Max 12G SDI/HDMI Wireless RX Gold Mount

Receive lossless HD video from up to 5000' away along line of sight with the Bolt 6 XT MAX 12G-SDI/HDMI Wireless Receiver from Teradek. The unit can wirelessly receive up to DCI 4K60 video with 10-bit HDR support, features a bright OLED display, and features HDMI and 12G-SDI outputs. This line supports the 6 GHz wireless band, which is now freely available. It also supports camera control with optional firmware via its 5-pin USB output. The unit comes with a Gold mount battery plate so it can be powered using an optional high-capacity Gold mount battery.

The receiver supports transmissions of up to DCI 4K60 video from any Bolt 6 or Bolt 4K series transmitter, which can simultaneously transmit to up to six receivers and has an improved long-range mode. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption and RSA 1024 key pairing protect your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 XT system also supports the transmission of time code and start/stop triggers.

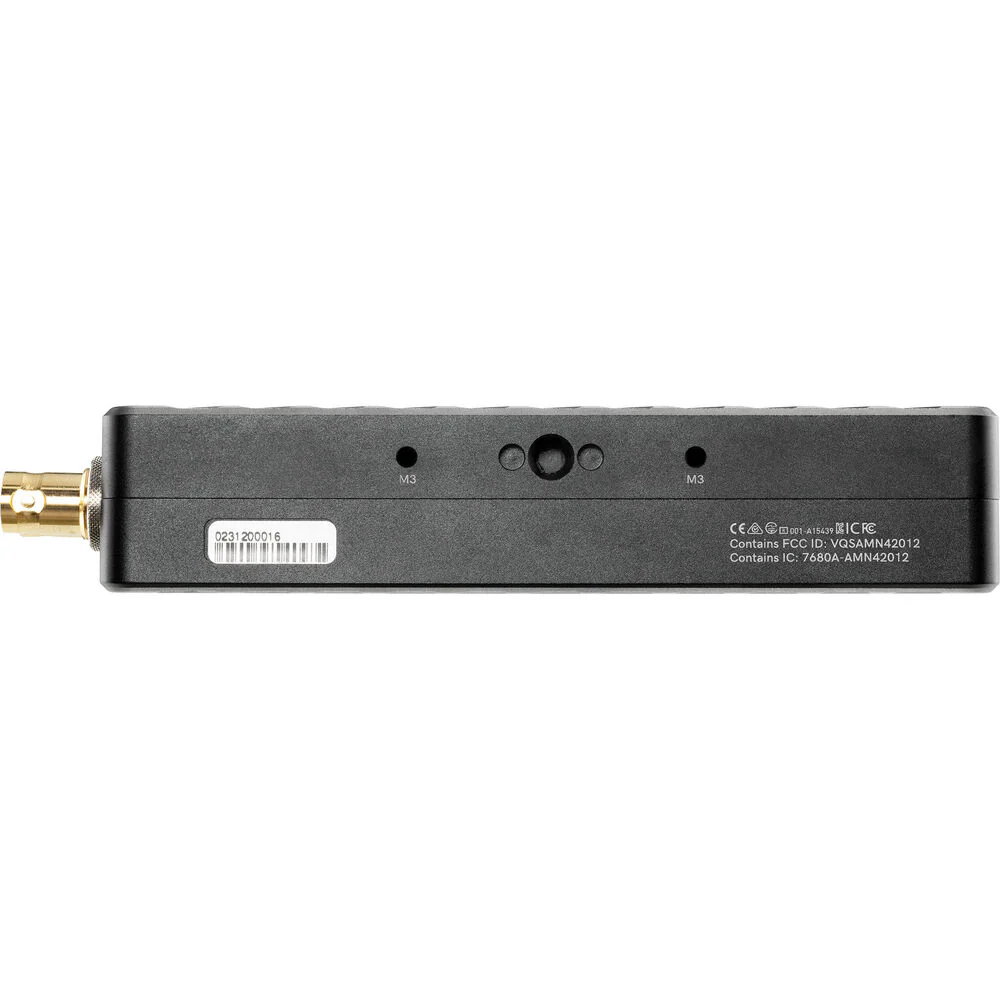

Though it can receive visually lossless video from any Bolt 4K series transmitter with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The receiver also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyser, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your receiver on a variety of monitors or rigs.

Key Features:

Supports New 6 GHz Frequency Band

Receive Video from up to 5000' Away LoS

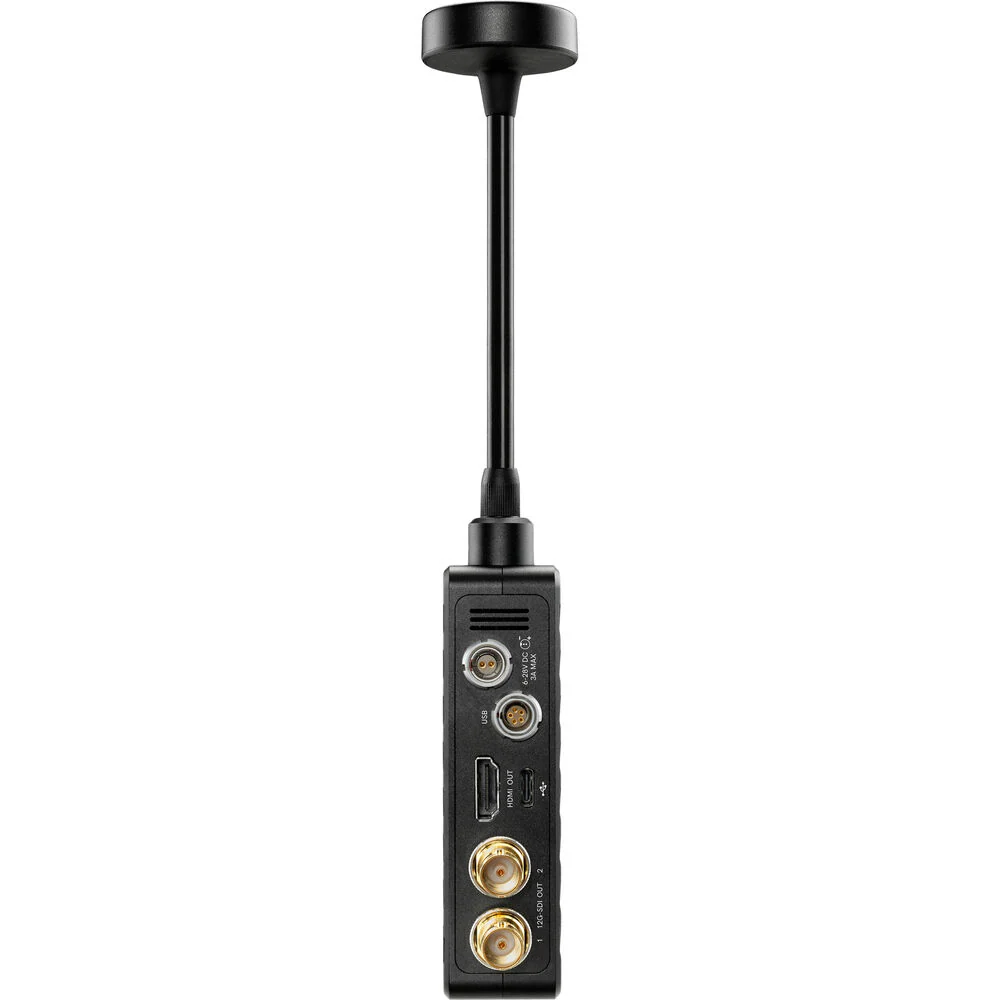

12G-SDI & HDMI Outputs, Zero Delay

Gold Mount Battery Plate

Smaller, Lighter & Quieter than Bolt 4K

5-Pin USB Output for Camera Control

Receive DCI 4K60 Video, 10-Bit 4:2:2

Compatible with all Bolt 4K Transmitters

AES-256 Encryption, 5 x Antennas

Bluetooth Mobile App, Spectrum Analyser

What's in the Box:

Teradek Bolt 6 XT Max 12G SDI/HDMI Wireless RX Gold Mount

Gold Mount Battery Plate

2-Pin to D-Tap Power Cable (18")

USB Type-A to Micro-USB Type-B Cable (3')

Ultrathin HDMI Type A Cable (18")

BNC SDI Cable (10")

AC Adapter with Cable (6')

Antenna

Battery Cover

Screw
