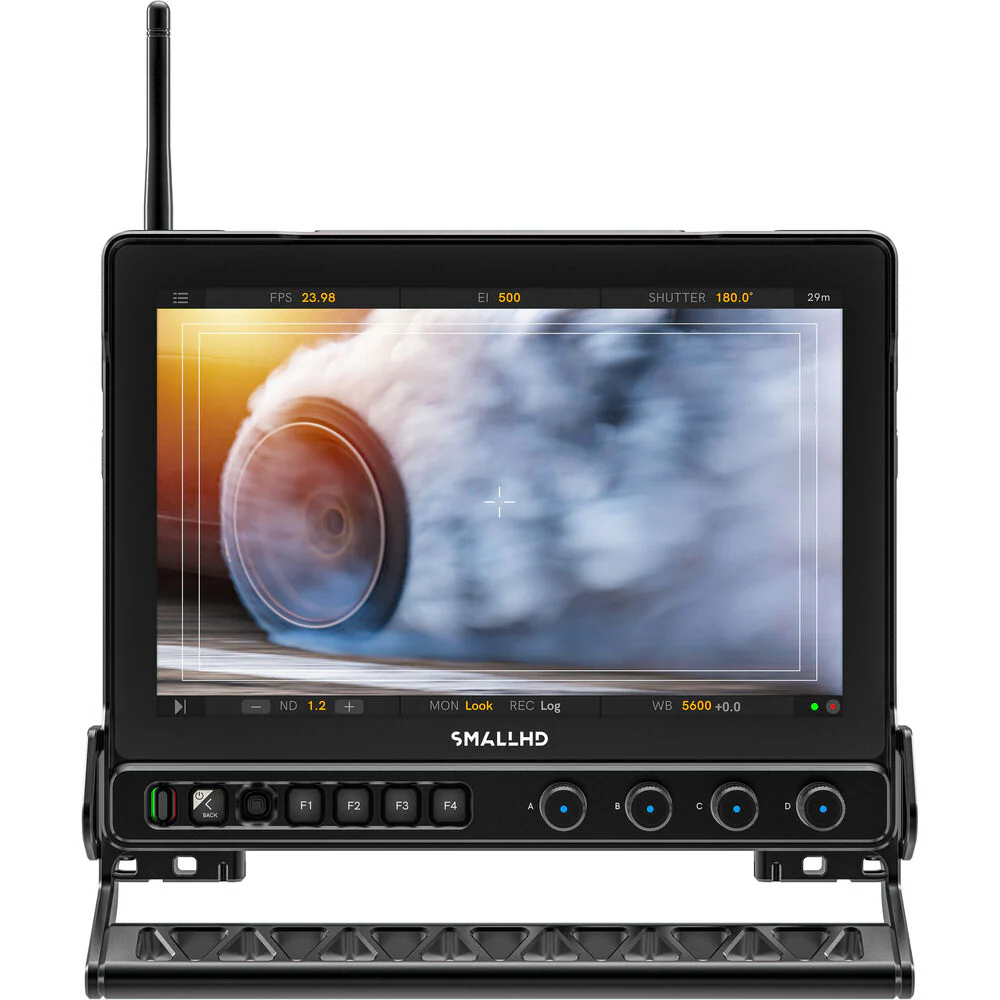

SmallHD Ultra 10 4K Portable Production Monitor

SmallHD ULTRA 10 4K Portable Production Monitor

Integrate a large, ultra-bright monitor into your production with this SmallHD ULTRA 10 4K Portable Production Monitor, which features a 2000 cd/m² display for viewing in just about any indoor or outdoor environment. The 10" monitor features a bright 2000 cd/m² display, a 1920 x 1200 touchscreen QD-LCD, wireless Teradek Bolt compatibility, HDMI 2.0, and 6G-SDI inputs/outputs that support up to 4K30 resolutions. Easily control ARRI, Sony, and RED cinema cameras from the monitor thanks to the 5-pin USB and Ethernet control ports.

QD-LED Edge-Lit LCD Panel

The Ultra 10 features an edge-lit QD-LED panel stack that diffuses and focuses the light through a quantum-dot film, ensuring high brightness, excellent image fidelity, colour accuracy, and colour uniformity.

It's perfect for focus pullers, pursuit vehicles, director's cages, DITs, multicamera studios, and anyone who desires maximum flexibility from their monitor.

All-Weather Design

Built into a rugged, shock-resistant aluminium chassis designed to withstand production rigors, the Ultra 10 is designated with an IP54 rating, protecting the display against harmful dust and water spray from all directions.

All components and ports are fully sealed, it is impact resistant, and it can operate in extreme temperatures.

PageOS

PageOS is an advanced, page-based software toolset with an intuitive UI/UX that gives you full control over colour, exposure, camera, LUTs, and more.

Built-In Wireless Support

The monitor features built-in wireless receiver technology compatible with optional Teradek Bolt 6 transmitters.

A Wi-Fi antenna provides solid connectivity with Bolt 6 or Bolt 4K transmitters using 5 or 6 GHz frequency bands.

Multifunction Controls

Simultaneously view and adjust crucial camera-control functions and PageOS tools with a camera-control interface anchored to every page. Four customisable encoder knobs let you change PageOS tools and settings on the fly with capacitive-touch, long-push, short-push, and rotary functionality.

Assign workflow shortcuts to the custom-function buttons for software tools, switch inputs, adjust display brightness, and more.

Lens Control Overlays

With Teradek RT integration, view critical lens data on your monitor.

Quickly create, edit, and delete visual marks on the focus scale, set on-screen limits, and even pinch-zoom the scale.

Multiview

View two camera feeds and use multiple tools pages all on screen at the same time, side by side (future update).

Power Options

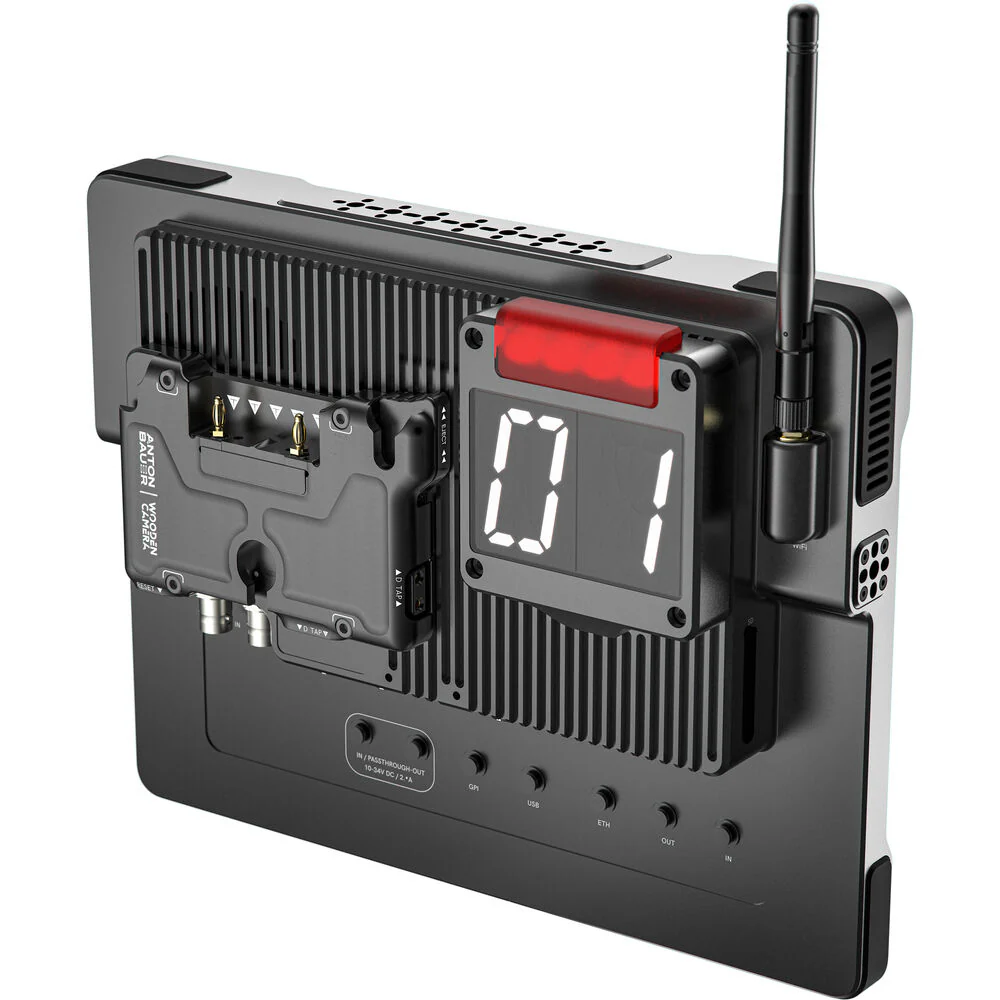

Power is delivered to the ULTRA 10 via 2-pin LEMO ports or a separately available Gold mount or V-mount micro battery plate.

It also features a 2-pin LEMO-type output to power additional accessories, such as an optional wireless receiver.

Key Features:

10" 1920 x 1200 Touchscreen Display

4K30 6G-SDI & HDMI Inputs/Outputs

Bright 2000 cd/m² QD-LCD Panel

Wireless Connectivity with Teradek Bolt

IP54 Weatherproof, PageOS Interface

Optional RED, ARRI, Sony Camera Control

5-Pin USB & Ethernet Control Powers

Onboard Button, Joystick & Knob Controls

What's in the Box:

SmallHD ULTRA 10 4K Portable Production Monitor
