Portkeys HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support

Portkeys HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support

View your video capture with 3D LUT output using the HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support from PORTKEYS. This monitor features support for up to DCI 4K24 video, 1920 x 1200 resolution, 10-bit colour, and 3D LUT output on both the 4K HDMI and 3G/HD/SD-SDI outputs. Its 1100 cd/m² brightness is high enough for exterior viewing, and the wide viewing angles of 178° make it easy for multiple crew members to watch the footage simultaneously. The rear of the monitor sports a detachable cover for a video transmitter and dual Sony L-series/NP-F battery plates.

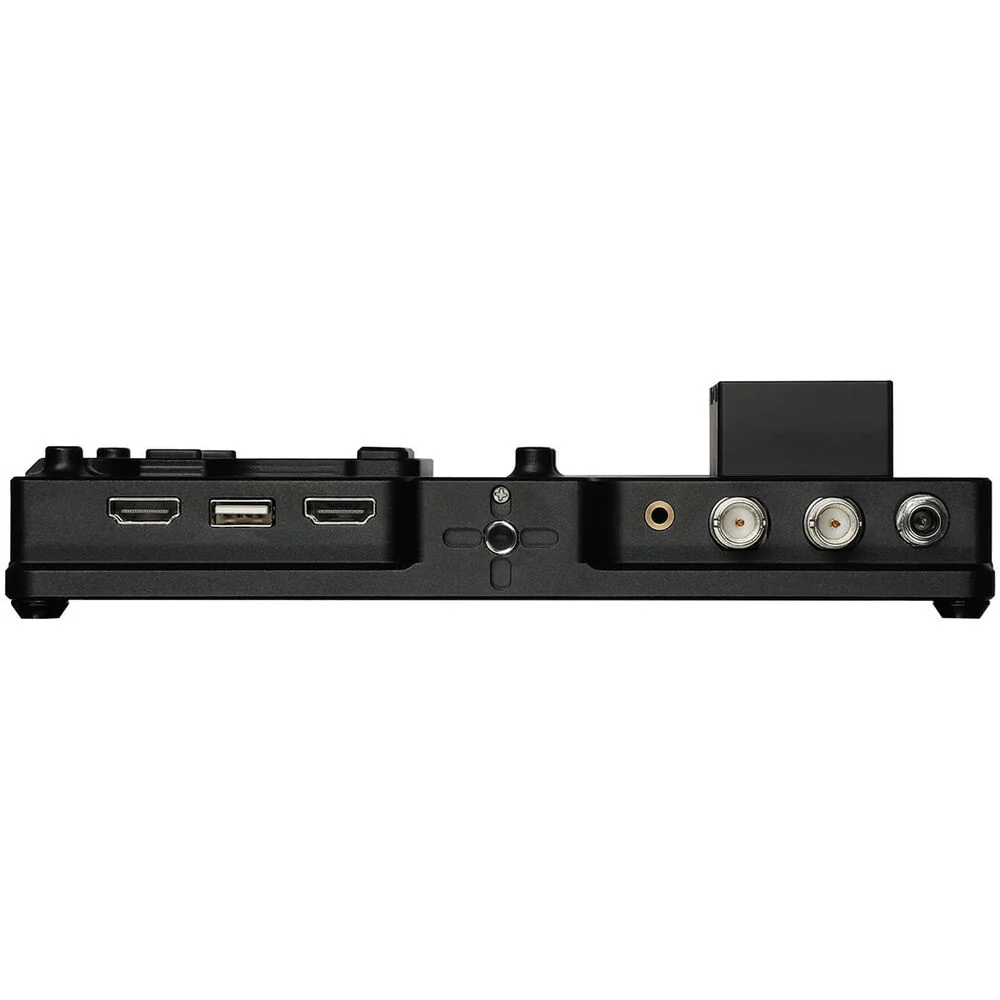

HDMI and 3G-SDI Input/Output

4K HDMI and 3G/HD/SD-SDI inputs, both with loop-through outputs

3D LUT Support

3D LUTs for colour grading and monitoring can be applied to both the HDMI and SDI outputs

Hi-Bright Monitor

8" on-camera monitor with 1100 cd/m² brightness and 1000:1 contrast ratio

Durable Housing

Rugged, heat-dissipating CNC-machined aluminium alloy housing

Top and bottom 1/4"-20 thread mounts

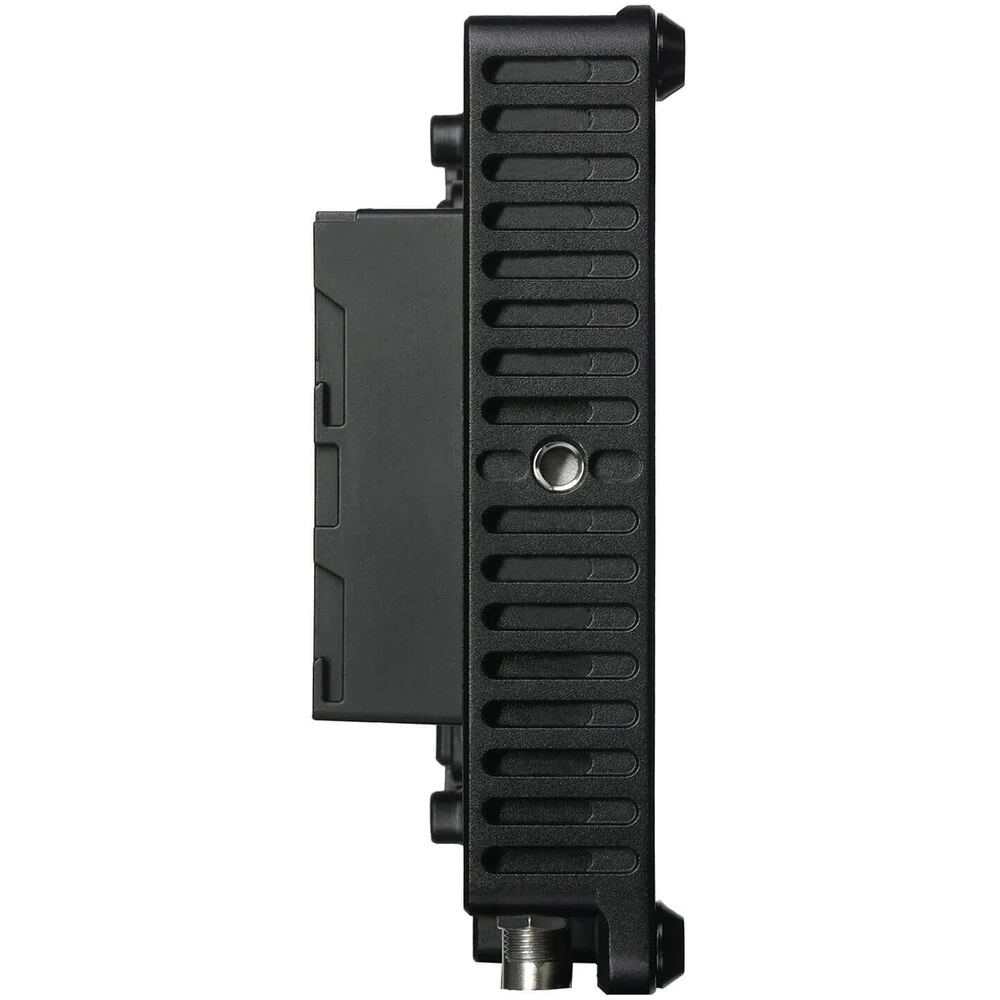

Hot-Swappable Battery Plates

Hot-swappable, dual Sony L-series-type battery plates

DC input port for power supply

Optional Wireless Video Transmitter

Comes with a detachable cover for the wireless video transmitter mount

Key Features:

8" HDMI & 3G-SDI 1920 x 1200 Monitor

Supports up to DCI 4K24 Input

1100 cd/m² Bright, 1000:1 Contrast Ratio

10-Bit Colour, 3D LUT Out on HDMI & SDI

4K HDMI/3G-SDI Input & Loop-Out

HDMI to SDI & SDI to HDMI Conversion

Heat-Dissipating Aluminium Housing

Peaking, Histogram, Waveform, Zebra

Mount for Select Video Transmitters

Dual L-Series Battery Plates & DC Port

What's in the Box:

Portkeys HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support

D-Tap to DC Barrel Power Cable

Screen Cleaning Cloth

M2 Allen Key

M3 Allen Screw

Cup Head Gasket

Micro-USB Flash Drive
