Litepanels Gemini 2x1 Soft RGBWW Panel Standard Yoke Litepanels

This Gemini 2x1 RGB LED Light Panel from Litepanels is an aluminum-constructed, 25 x 6.5 x 12.5" fixture with three lighting modes. The CCT color temperature control has six factory presets in increments from 2700 to 10,000K. There are also six presets for user-defined color temperature and plus/minus green control. The HSI color mode allows you to adjust the hue, saturation, and intensity, while Gel mode permits your choice from a library of often-used filters. A firmware update adds a Lighting Effects mode that includes TV simulation, hue burst, paparazzi, strobe, fire, squares, fireworks, emergency lights, pulse, and party lights. The light has a CRI/TLCI rating of 97 for daylight balance and 99 for tungsten balance, indicating a very accurate rendition of color. The Gemini is dimmable from 100 to 0% without flicker or color shift. Settings and features are displayed on the rear LCD screen.

All of these adjustments can be made locally on the unit or remotely via a console, thanks to the Gemini's built-in DMX. There's even the option of wireless DMX or Bluetooth control via a separately-purchased remote module. The Gemini is ready for worldwide use, thanks to its built-in 100 to 240 VAC power supply but it can also run on batteries when power is unavailable.

The Gemini has a number of convenience features, such as the ability to stack and gang several lights together with an optional yoke and hardware. You can also daisy-chain multiple lights together in Master/Slave mode, allowing a single designated master light to control the others. This version of the Gemini ships with a standard yoke and a power cable with bare ends.

3 Lighting Modes

• CCT (Correlated Color Temperature) mode allows for bi-color (daylight to tungsten) operation with the addition of plus and minus green adjustment
• HSI color mode allows for full control over hue, saturation, and intensity
• Gel mode allows you to select your choice from a variety of gels

Firmware Update for DMX Fast Select Modes

• Allows popular DMX modes to be quickly chosen and operated directly from the main menu
• Bluetooth - Extended CCT range control from 2700 to 10,000K
• WDMX - Hold mode and fan control added to CCT & HSI as well as CCT & RGBW modes
• DMX - Fan control for CCT & HSI as well as CCT & RGBW modes
• RDM - Personalities reprioritized for more frequently used settings
• Apollo mode automatically configures Gemini to be paired and controlled via Apollo WDMX bridge

Firmware Update for Special Effects

A firmware update adds a Lighting Effects mode that includes TV simulation, hue burst, paparazzi, strobe, fire, lightning, squares, fireworks, emergency lights, pulse, and party lights.

Power Options

• Integrated multi-voltage power supply operates worldwide on current from 100-240 VAC
• Or operate with DC battery power using separately available V-mount or Gold mount battery plates

Performance

• Flicker-free at any frame rate or shutter angle at any intensity level
• Smooth dimming from 100 to 0%, with no color shift
• Energy efficient fixture draws only 325W nominal
• No heavy external ballast or restrike period
• Ultra-quiet cooling fan with optional silent operation mode

Presets

• Program user presets on Channel A, which records color and intensity
• Factory presets on channel B with increments from 2700 to 6000K
• Six user-programmable presets

Control

• Master/Slave mode for connecting multiple lights together and controlling them all from a single master light
• Optional Bluetooth and wireless DMX modules allow the brightness, color, and cooling modes to be remote controlled
• Intuitive and ergonomic controls for dimming, color, and fixture set up

Durability and Design Features

• Aluminum core construction for maximum durability and thermal management
• Durable, industry standard powerCon locking power connector with ability to daisy chain power
• Yoke with Junior pin for easy mounting and positioning

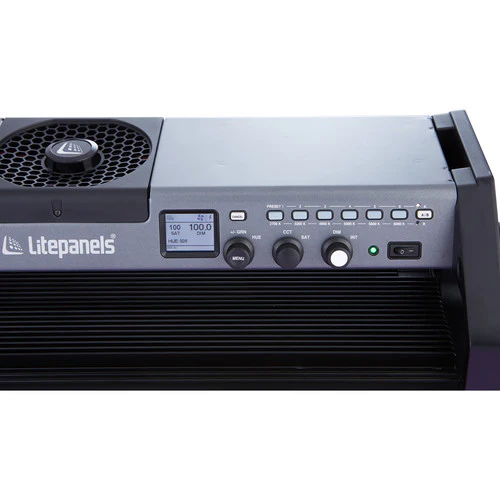

• LCD screen displays vital settings and status
• Barndoor/honeycomb accessory rails

Compatibility

Litepanels Gemini 2x1 Soft RGBWW Panel Standard Yoke Litepanels

Key Features

• For Studio & Film/TV Production
• Output: 9713 Lux at 3.3' (6000K)
• 2700 to 10,000K CCT; RGB Control
• 23.75 x 11" Panel; AC/DC Operation
• CRI 97 | TLCI 97
• Fan Cooled with Quiet Mode
• On-Board Controls
• Optional DMX, Wireless DMX, Bluetooth
• Includes Standard Yoke
• Includes Bare Ends Power Cable
