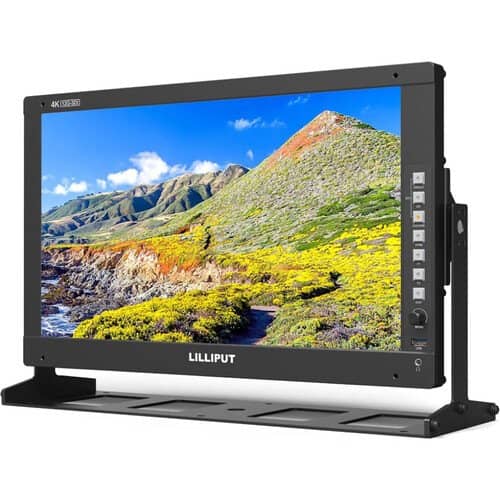

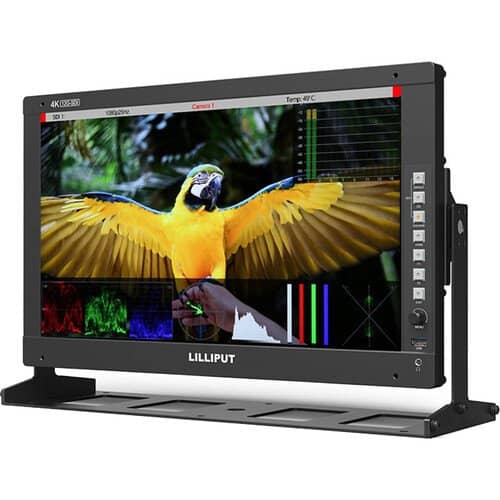

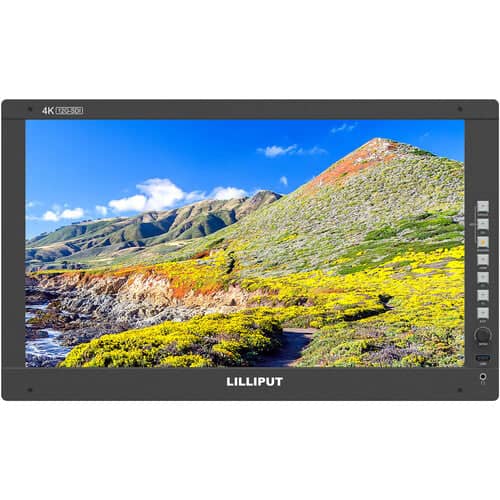

Lilliput Q17 17.3" 12G-SDI/HDMI HDR Monitor (Gold Mount)
The Q17 17.3" 12G-SDI/HDMI HDR Monitor from Lilliput is a 1920 x 1080 resolution production monitor that supports up to UHD 4K input and loop output. Its display provides 1200:1 contrast, 300 cd/m2 brightness, and a wide 170 x 170° viewing angle. The integrated battery plate enables you to use longer-lasting Gold mount batteries when not working near an AC power source. The Q17 monitor features one HDMI 2.0, two 12G-SDI, and two 3G-SDI inputs and loop-through outputs. It also features 12G-SDI single-link, dual-link, and 3G-SDI quad-link options plus an expansion slot for an optional 12G SPF+ module.
Pro features that help you obtain optimal images include HDR and 3D LUT support, adjustable gamma, LAN and RS-422 remote control options, and an audio vector and level monitoring. Monitor display functions include a 16:9 aspect ratio, quad-view, false colour, focus peaking, check field, image flip, image freeze, selectable markers, and colour temperature functions. The Q17 monitor comes with multiple mounting options, a USB drive, an acrylic screen protector, and a carrying case.
Versatile Inputs/Loop Outputs
12G-SDI single/dual/quad link
3G-SDI
HDMI 2.0
Colour Calibration
Colour Spaces
SMPTE C
Rec. 709
EBU
Colour Temperature
3200/5500/6500/7500/9300K
Customizable settings
Gamma Options
Gamma can be adjusted between 1.8 to 2.8 for better detail in dark areas
Remote Control
LAN control
RS-422 control
Lissajous audio vector
Audio levels
High Dynamic Range
Selectable HDR offers greater detail in highlights and shadows
Supports ST2084/ST2084 1000/HLG
Display Functions
Quad-view
False-colour
Focus peaking
Check field
Image flip
Image freeze
Selectable markers
Colour temperature selection
Versatile Mounting
Tabletop base
Tilting bracket
Carrying case
Rack-mountable
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Lilliput Q17 17.3" 12G-SDI/HDMI HDR Monitor (Gold Mount)
The Q17 17.3" 12G-SDI/HDMI HDR Monitor from Lilliput is a 1920 x 1080 resolution production monitor that supports up to UHD 4K input and loop output. Its display provides 1200:1 contrast, 300 cd/m2 brightness, and a wide 170 x 170° viewing angle. The integrated battery plate enables you to use longer-lasting Gold mount batteries when not working near an AC power source. The Q17 monitor features one HDMI 2.0, two 12G-SDI, and two 3G-SDI inputs and loop-through outputs. It also features 12G-SDI single-link, dual-link, and 3G-SDI quad-link options plus an expansion slot for an optional 12G SPF+ module.
Pro features that help you obtain optimal images include HDR and 3D LUT support, adjustable gamma, LAN and RS-422 remote control options, and an audio vector and level monitoring. Monitor display functions include a 16:9 aspect ratio, quad-view, false colour, focus peaking, check field, image flip, image freeze, selectable markers, and colour temperature functions. The Q17 monitor comes with multiple mounting options, a USB drive, an acrylic screen protector, and a carrying case.
Versatile Inputs/Loop Outputs
12G-SDI single/dual/quad link
3G-SDI
HDMI 2.0
Colour Calibration
Colour Spaces
SMPTE C
Rec. 709
EBU
Colour Temperature
3200/5500/6500/7500/9300K
Customizable settings
Gamma Options
Gamma can be adjusted between 1.8 to 2.8 for better detail in dark areas
Remote Control
LAN control
RS-422 control
Lissajous audio vector
Audio levels
High Dynamic Range
Selectable HDR offers greater detail in highlights and shadows
Supports ST2084/ST2084 1000/HLG
Display Functions
Quad-view
False-colour
Focus peaking
Check field
Image flip
Image freeze
Selectable markers
Colour temperature selection
Versatile Mounting
Tabletop base
Tilting bracket
Carrying case
Rack-mountable
