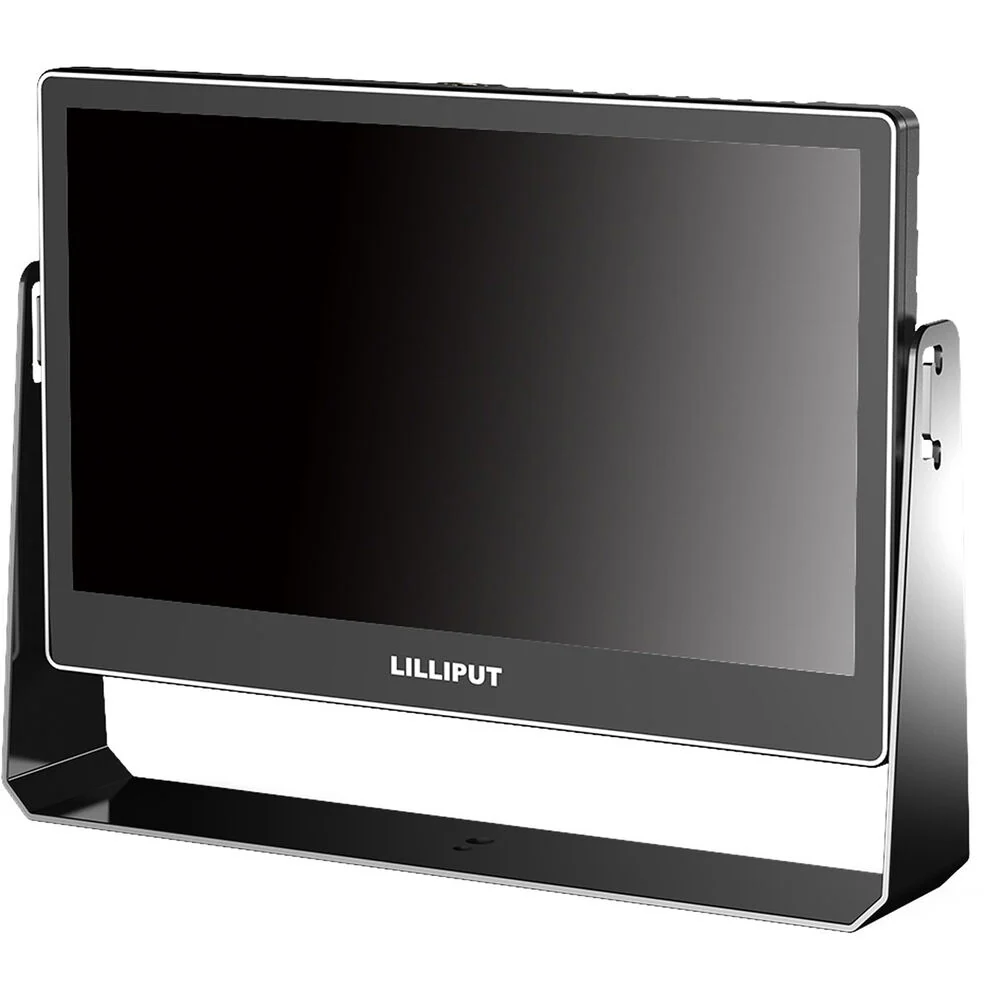

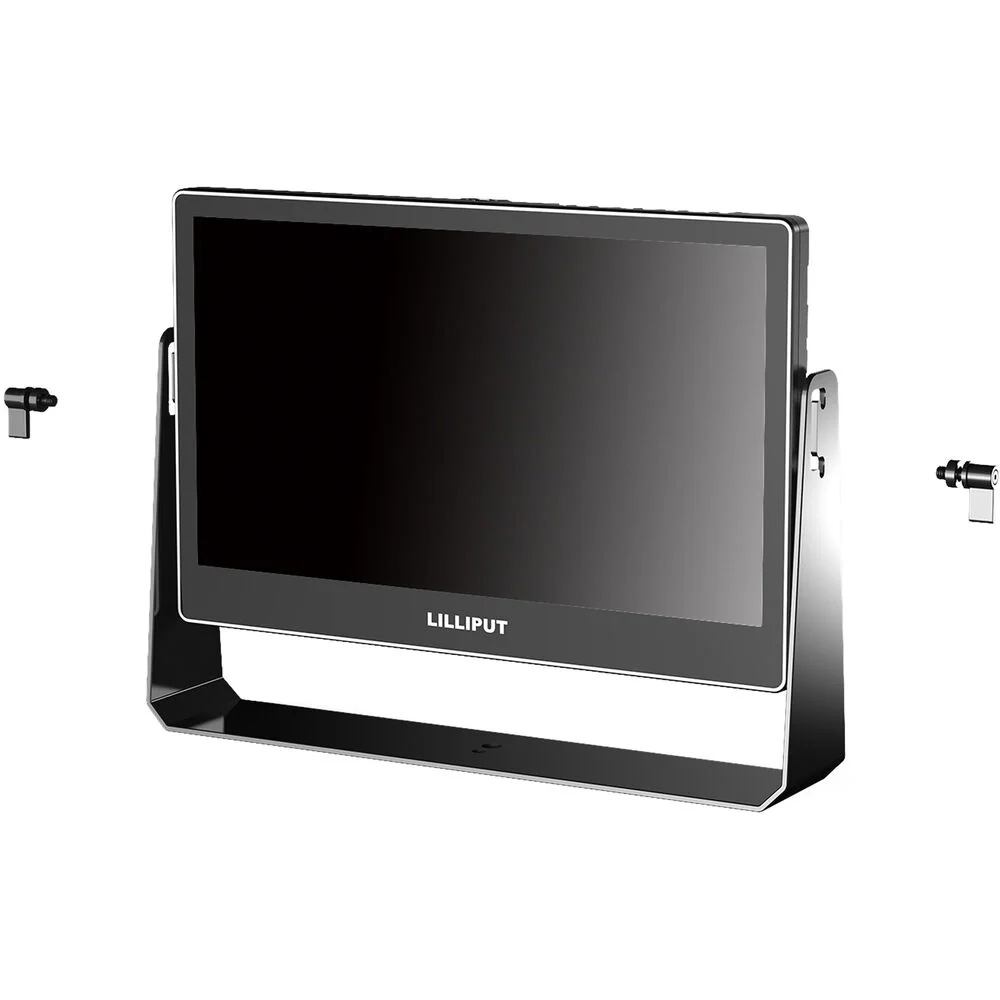

Lilliput A13 13.3" 4K HDMI/3G-SDI OLED Broadcast Monitor
The A13 13.3" 4K HDMI/3G-SDI OLED Broadcast Monitor from Lilliput is a 13.3" OLED broadcast studio with a native resolution of 3840 x 2160. It can support up to UHD 4K60 and automatically scales all incoming video signals to properly display these on its UHD screen, which boasts a massive 100,000:1 contrast ratio, a viewing angle of 170°, and 400 cd/m² brightness.
The A13 features four HDMI 2.0 inputs, a 3G-SDI input, a DisplayPort input, and a 3G-SDI loop-through output. The monitor supports HDR Rec.709 and DCI-P3 colour spaces and accurate colour calibration. Other features include quad-split multiview, PbP, PiP, stereo speakers, and a headphone output.
A 12 VDC power supply is included for powering the monitor from an AC outlet when working within a studio environment. You may also power the unit with an L-series battery using the included VESA battery plate, or you can utilise a separately available V-mount plate.
Multicamera Setup
The monitor features a multiview function that allows you to switch between PbP, PiP, and quad-split multiview modes.
Supported HDR
It supports 100% Rec. 709 and DCI-P3 colour spaces.
Accurate Colour Calibration
The monitor supports colour calibration to ensure your monitor is displaying your image accurately.
Multiple Interfaces
The monitor features a 3G-SDI input that supports up to 1080p60, four HDMI inputs that support up to UHD 4K60, and a DisplayPort input that supports up to UHD 4K60. There is also a 3G-SDI loop output that can pass a 1080p60 signal onto another monitor or switcher.
Included Accessories
The monitor includes a gimbal bracket for desktop use and tilting, a sun hood, a 12V power adapter, an HDMI cable, and a VESA L-series battery plate. An optional V-mount battery plate is available separately.
Key Features:
13.3" 3840 x 2160 OLED Monitor
Supports up to UHD 4K60 Input
HDMI, 3G-SDI, DisplayPort Input
100,000:1 Contrast Ratio
Rec.709/DCI-P3 Colour Space, Calibration
170° H/V Viewing Angle
400 cd/m² Brightness
What's in the Box:
Lilliput A13 13.3" 4K HDMI/3G-SDI OLED Broadcast Monitor
VESA L-series Battery Plate
12V Power Adapter
Sun Hood
Gimbal Bracket
HDMI Cable (31.5")
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Lilliput A13 13.3" 4K HDMI/3G-SDI OLED Broadcast Monitor
The A13 13.3" 4K HDMI/3G-SDI OLED Broadcast Monitor from Lilliput is a 13.3" OLED broadcast studio with a native resolution of 3840 x 2160. It can support up to UHD 4K60 and automatically scales all incoming video signals to properly display these on its UHD screen, which boasts a massive 100,000:1 contrast ratio, a viewing angle of 170°, and 400 cd/m² brightness.
The A13 features four HDMI 2.0 inputs, a 3G-SDI input, a DisplayPort input, and a 3G-SDI loop-through output. The monitor supports HDR Rec.709 and DCI-P3 colour spaces and accurate colour calibration. Other features include quad-split multiview, PbP, PiP, stereo speakers, and a headphone output.
A 12 VDC power supply is included for powering the monitor from an AC outlet when working within a studio environment. You may also power the unit with an L-series battery using the included VESA battery plate, or you can utilise a separately available V-mount plate.
Multicamera Setup
The monitor features a multiview function that allows you to switch between PbP, PiP, and quad-split multiview modes.
Supported HDR
It supports 100% Rec. 709 and DCI-P3 colour spaces.
Accurate Colour Calibration
The monitor supports colour calibration to ensure your monitor is displaying your image accurately.
Multiple Interfaces
The monitor features a 3G-SDI input that supports up to 1080p60, four HDMI inputs that support up to UHD 4K60, and a DisplayPort input that supports up to UHD 4K60. There is also a 3G-SDI loop output that can pass a 1080p60 signal onto another monitor or switcher.
Included Accessories
The monitor includes a gimbal bracket for desktop use and tilting, a sun hood, a 12V power adapter, an HDMI cable, and a VESA L-series battery plate. An optional V-mount battery plate is available separately.
Key Features:
13.3" 3840 x 2160 OLED Monitor
Supports up to UHD 4K60 Input
HDMI, 3G-SDI, DisplayPort Input
100,000:1 Contrast Ratio
Rec.709/DCI-P3 Colour Space, Calibration
170° H/V Viewing Angle
400 cd/m² Brightness
What's in the Box:
Lilliput A13 13.3" 4K HDMI/3G-SDI OLED Broadcast Monitor
VESA L-series Battery Plate
12V Power Adapter
Sun Hood
Gimbal Bracket
HDMI Cable (31.5")
