BirdDog 3x P240 Black and 1x Skaarhoj PTZ Pro with Blue Pill Inside (PTZ-PRO-V2B)

BirdDog 3x P240 Black and 1x Skaarhoj PTZ Pro with Blue Pill Inside (PTZ-PRO-V2B)

Add three powerful PTZ cameras to your education environment, event space, or house of worship with this BirdDog 3 x P240 PTZ Cameras and SKAARHOJ PTZ Pro V2 Controller Bundle put together by B&H. The bundle includes three black P240 40x zoom full NDI PTZ cameras and the SKAARHOJ PTZ Pro V2 Camera Controller with Blue Pill, allowing you to integrate multiple controllers into one.

Highlights of the P240 include a 40x zoom, HDMI/3G-SDI output, full NDI 5.5 support, audio input/output with phantom power, and an integrated ND filter. The PTZ Pro V2 features a precision 3-axis joystick with a dedicated focus knob, Power-over-Ethernet, support for multiple PTZ encoders, and embedded Blue Pill hardware to centralize multi-controller configurations.

BirdDog P240 40X Full NDI PTZ Camera with HDMI/3G-SDI (Black)

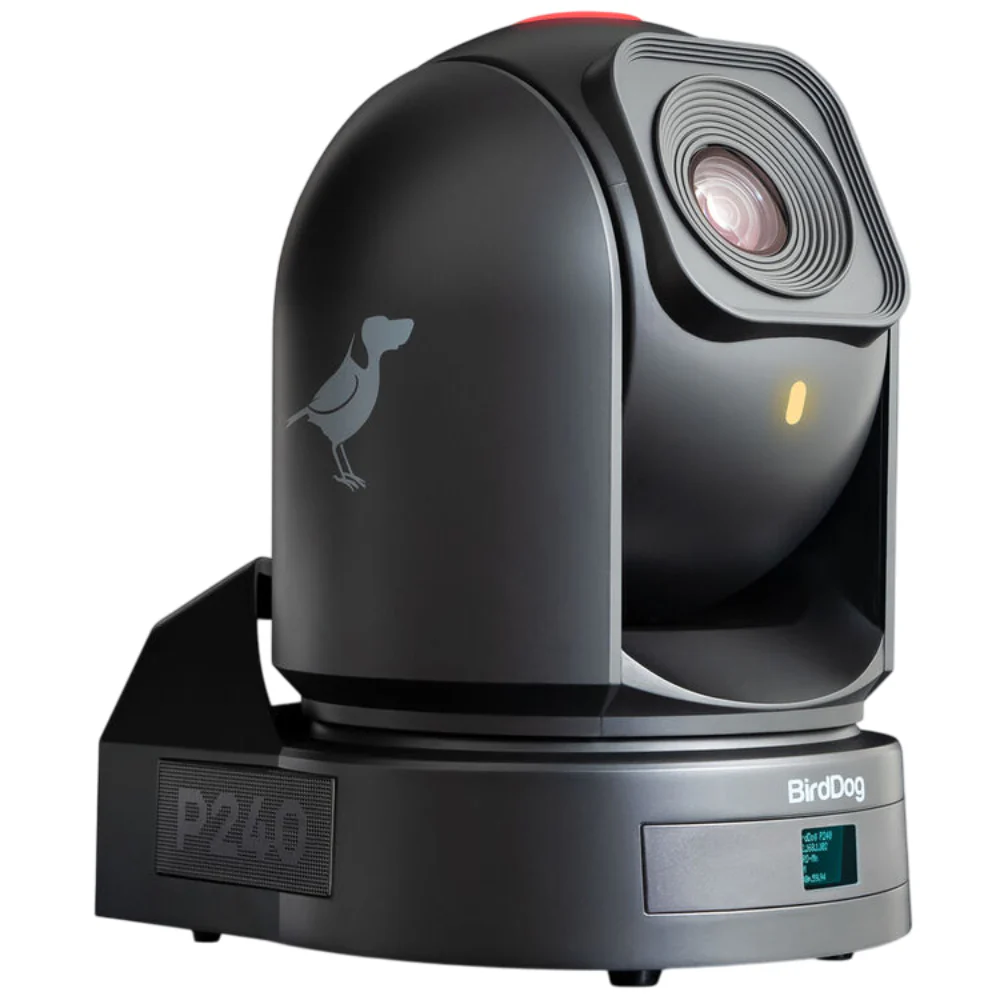

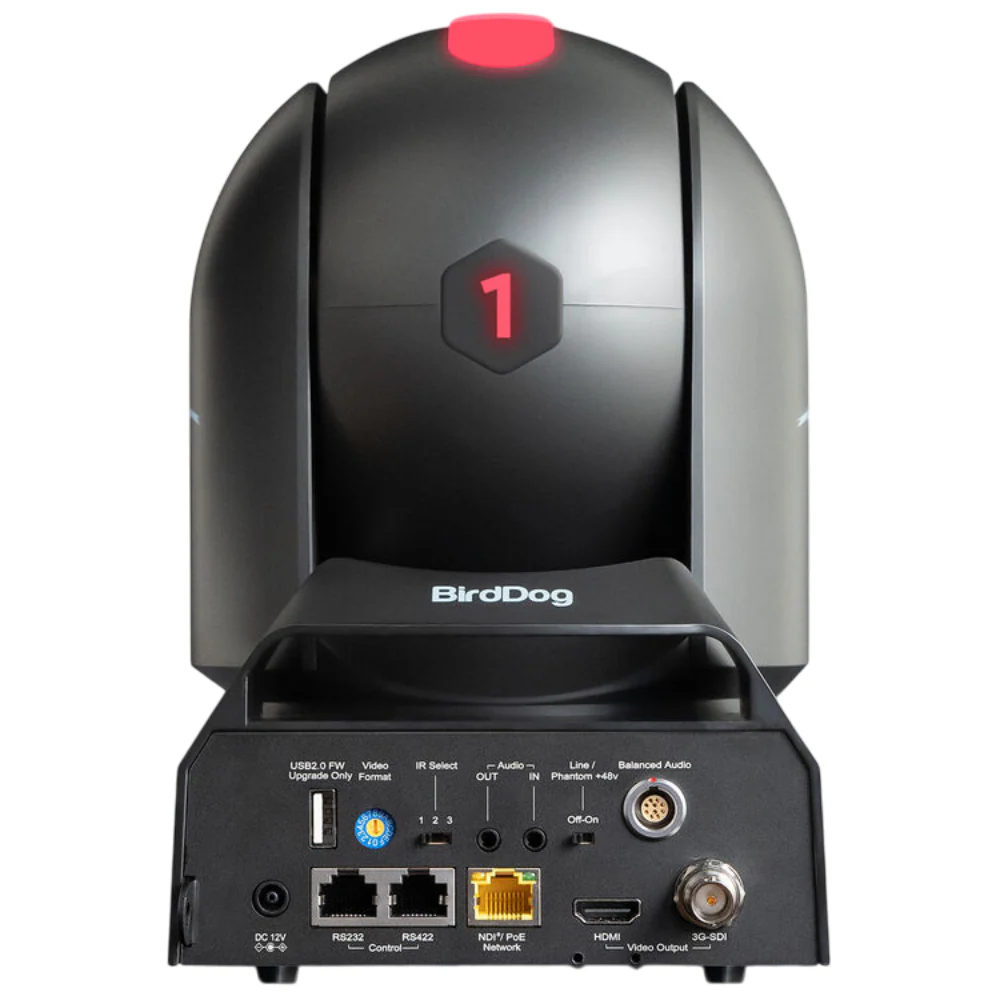

The black P240 40X Full NDI PTZ Camera with HDMI/3G-SDI from BirdDog is a Full NDI PTZ camera that offers increased light sensitivity via its Sony Exmor 1/2.5" CMOS 8.5MP sensor while capturing sharp and vivid images in resolutions up to 1080p60. Output options include NDI, HDMI, and 3G-SDI as well as balanced XLR audio via an optional breakout cable. The camera features an integrated ND filter.

The IP output delivers Full NDI and other flavors of NDI, with optional BirdDog Cloud 3.0 integration unlocking access from globally connected, remote production locations. The IP address is visible via the integrated OLED display, which also displays the device name, stream name, resolution, and frame rate being used. The P240 supports Full NDI 5.5 for optimal compatibility across all NDI ecosystems.

NDI Video Scopes

The P240 can generate scopes to send out as NDI, NDI Proxy, or both. This allows for monitoring scopes on the NDI Proxy while sending a clean main NDI feed simultaneously. Choose from histogram, waveform, vectorscope, or RGB parade and the position on the NDI stream.

360° Mohawk Tally

The innovative Mohawk tally gives a full 360° view, so you'll never be caught out wondering which camera you need to be talking to.

NDI Genlock

Select an NDI source to be the timing master to provide more predictable timing in multi-camera environments.

FreeD for Free

FreeD is a protocol for sending PTZ positioning data to AR/VR systems including Unreal Engine, Brainstorm, Vizrt's Viz Virtual Studio, and it's all built right into the BirdUI.

Free Software Tools

Central Lite

Team up Central Lite with any NDI source, including all BirdDog hardware capable of creating NDI sources, and you can now drive your NDI streams to any BirdDog Studio NDI or Mini to decode NDI back to SDI or HDMI.

Cam Control

Cam Control allows easy access to all settings of all the BirdDog cameras on your network. Get the look you want on the full-screen output monitor and then copy across multiple cameras to colour match in seconds.

Comms Lite

Comms Lite is your free audio intercom solution with support for four BirdDog devices, plus a director

Globally Connected, No Computers Needed

By adding an optional BirdDog Cloud subscription, you can now access the PTZ cameras and all features from anywhere in the world. No computers needed on the camera side.

Wide Format Support

Along with Full NDI, the P240 supports NDI|HX2, NDI|HX3, SRT, and h.264 for low-bandwidth requirements

SKAARHOJ PTZ Pro V2 Camera Controller with Blue Pill

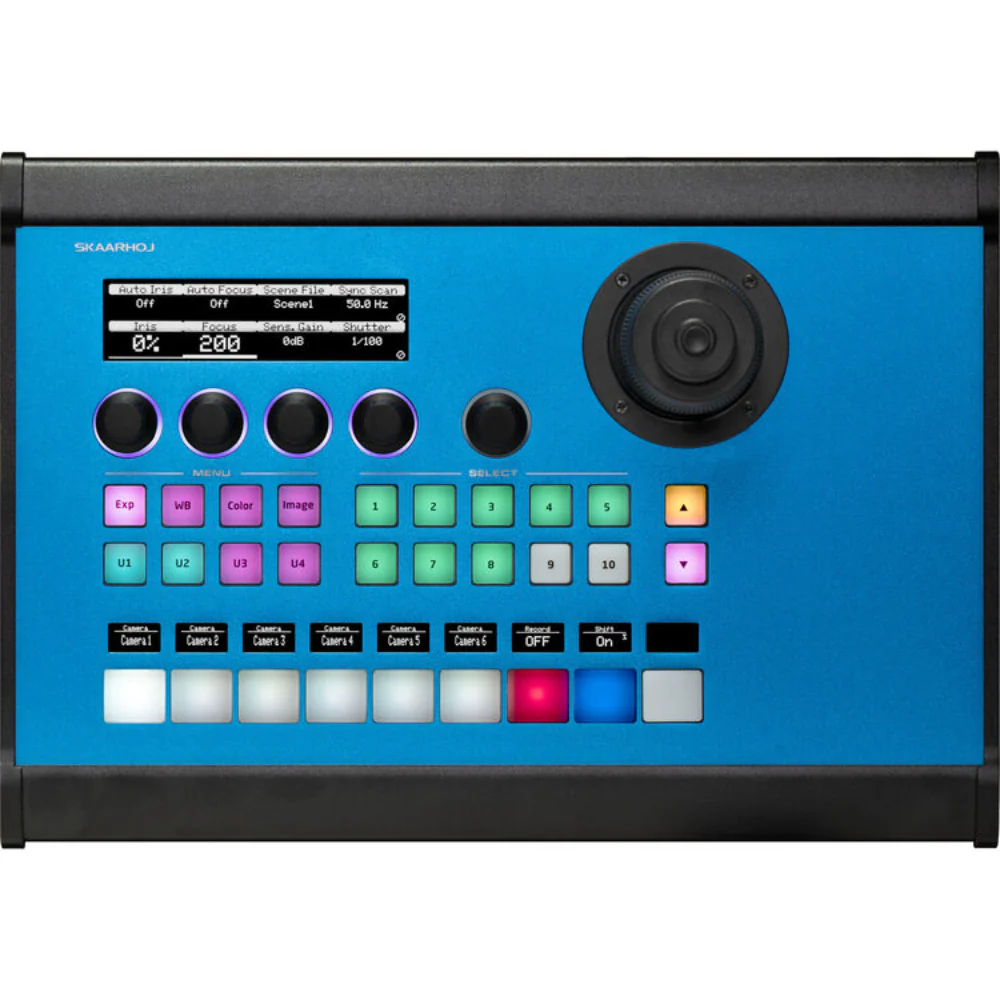

Perform precise pan/tilt/zoom control movements and have configuration and selection of PTZ cameras at your fingertips with the PTZ Pro V2 Camera Controller with Blue Bill from SKAARHOJ. Featuring a precision 3-axis joystick and dedicated focus knob, this compact controller makes it easy to pan, tilt, and rotate your cameras while also controlling their focus and zoom. The control panel features four backlit encoder knobs, ten camera selection buttons, and multiple programmable multifunction keys for presets and menu navigation. The updated V2 model adds compatibility with more camera models.

This PTZ Pro V2 includes the Blue Pill hardware embedded within the controller for decreased setup time. PoE (Power-over-Ethernet) technology simplifies setup by enabling data and power to travel via a single cable. The controller is compatible with VISCA devices and other IP-controlled cameras from brands such as AIDA, Blackmagic, Lumens, NewTek, Vaddio, BirdDog, Panasonic, PTZ Optics, and Sony. A power adapter is included in the box. There are available options to upgrade the joystick to the Hall Effect ergonomic joystick, as well as an option for an SDI upgrade component for use with Blackmagic Arduino Shields and fiber converters.

Key Features:

3 x Black P240 40x Zoom NDI Cameras

SKAARHOJ PTZ Pro V2 Camera Controller

1/2.5" Exmor R CMOS Sensor, 8.5MP

Full NDI 5.5 Support

NDI/HDMI/3G-SDI Video Output

Balanced XLR Audio Output

Integrated ND Filter

IP PTZ Controller with Blue Pill Inside

Supports Multiple PTZ Encoders

3-Axis Joystick, Dedicated Focus Knob

What's in the Box:

BirdDog 3x P240 Black and 1 X Skaarhoj PTZ Pro with Blue Pill Inside (PTZ-PRO-V2B)
